50μm transparent interdigital electrode quartz glass capacitor array MEMS gas biosensor photoelectric detection
| 【Numbering】BK2021012711 | 【CAS】cas | ||
| 【Item No.】BK2021012711 | 【specification】 | ||
|
|||
50 micron transparent interdigital electrode quartz glass gas humidity biosensor chip MEMS

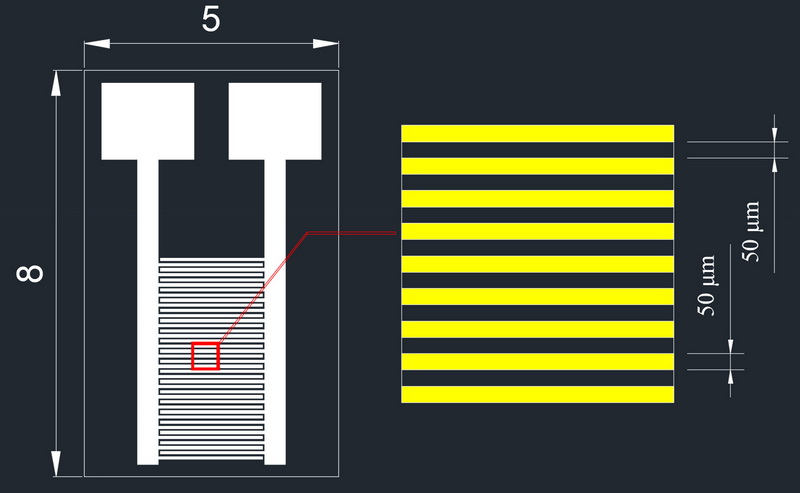

1. Dimensions: 5mm*8mm*0.7mm.
2. Line width: 50um, line distance: 50um, finger length: 2.1mm, number of interdigital pairs: 20 (40 fingers) 3. Electrode substrate is quartz glass, polished on both sides, fully transparent;
4. Metal layer structure: Cr/Au, thickness is 30nm, 100nm respectively; 5. Electrode operating temperature range: -150℃~400℃;
6. Mainly used in various chemical, physical and medical sensors, with reliable performance and stable quality. 7. Large quantity and preferential price.
Message
1. Dimensions: 5mm*8mm*0.7mm.
2. Line width: 50um, line distance: 50um, finger length: 2.1mm, number of interdigital pairs: 20 (40 fingers) 3. Electrode substrate is quartz glass, polished on both sides, fully transparent;
4. Metal layer structure: Cr/Au, thickness is 30nm, 100nm respectively; 5. Electrode operating temperature range: -150℃~400℃;
6. Mainly used in various chemical, physical and medical sensors, with reliable performance and stable quality. 7. Large quantity and preferential price.
We provide a variety of interdigital electrodes, including different shapes, different sizes, different line widths and distances, different substrates (alumina ceramics, PI/PET flexible materials, monocrystalline silicon), and different processes (thick film process, PCB process, MEMS process).
| Warm tips: Suzhou Beike nano products are only used for scientific research, not for human body,different batches of products have different specifications and performance |
Message
|
| Warm tips: Suzhou Beike nano products are only used for scientific research, not for human body,different batches of products have different specifications and performance.The website pictures are from the Internet. The pictures are for reference only. Please take the real object as the standard. In case of infringement, please contact us to delete them immediately. |
