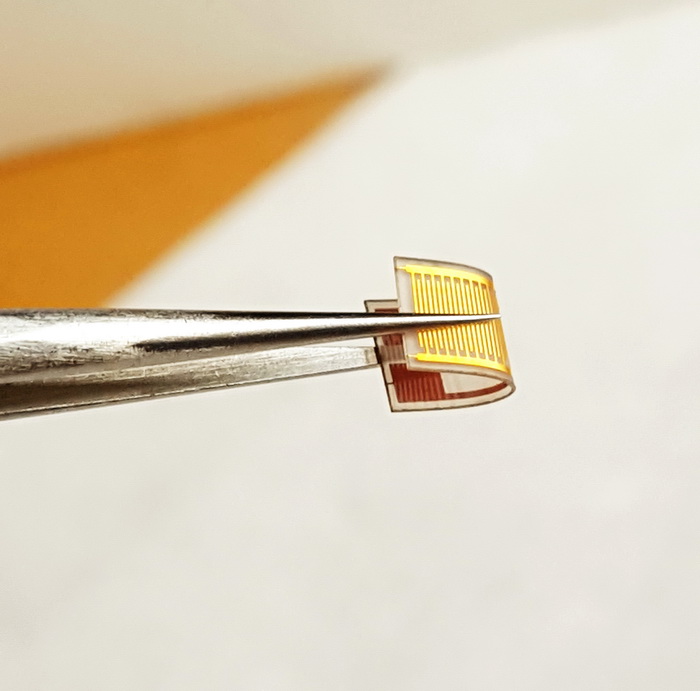

100μm flexible interdigital electrode capacitance array scientific research experiment smart wearable sensor chip PET
| 【Numbering】BK2021012701 | 【CAS】cas | ||
| 【Item No.】BK2021012701 | 【specification】 | ||
|
|||

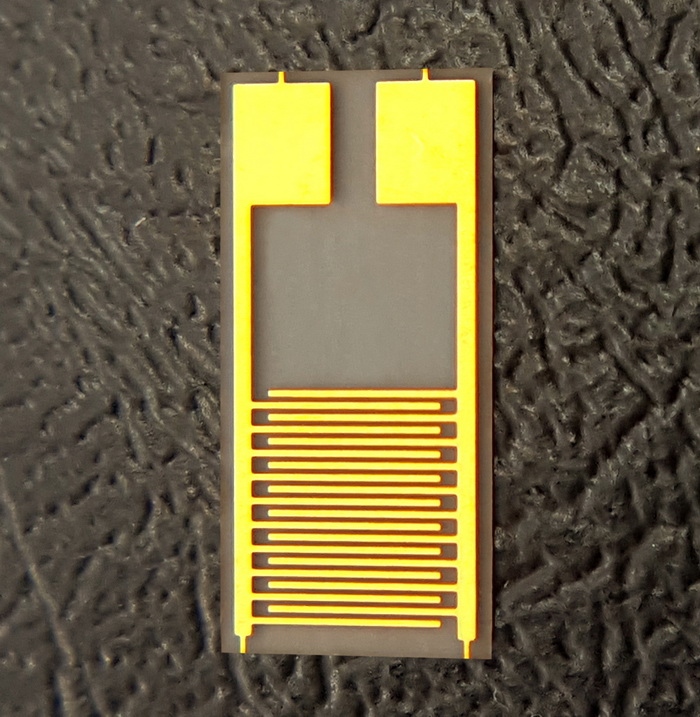

Flexible PET interdigital electrode IDE biogas humidity sensor capacitance array

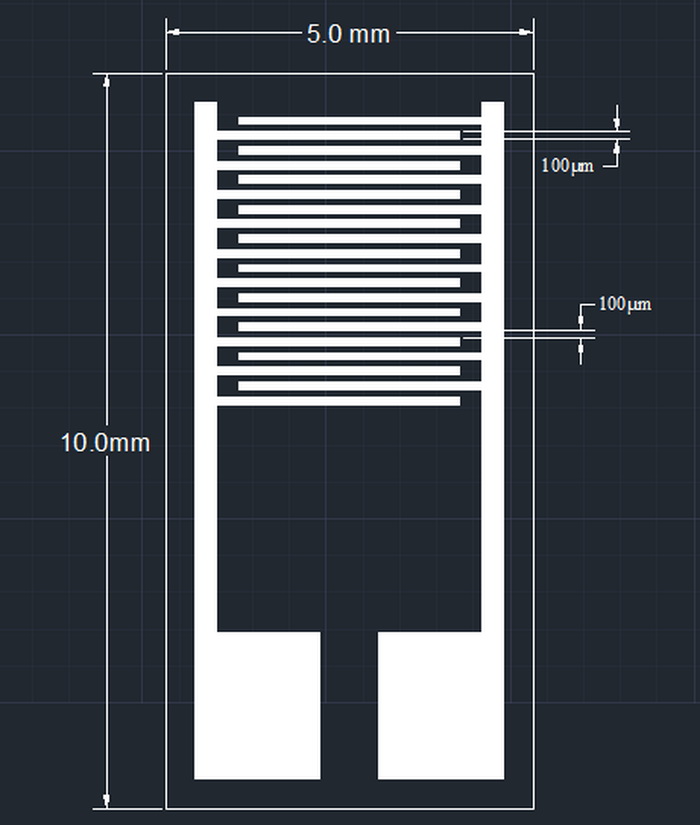

1. Electrode substrate: polyethylene terephthalate (PET), thickness 150 u m,
The external dimension is 5mm*10mm.
2. The line width is 100 μm, the line spacing is 100 μm, and the length is 3.3mm. Interdigital pairs: 10 pairs (20 fingers). 3. The metal layer structure is Cu/Ni/Au, and the thickness is 12um, 4um, and 1um respectively.
4. Electrode operating temperature range: -50℃~120℃.
5. Mainly used in various chemical, physical and medical sensors, with reliable performance and stable quality. 6. Large quantity and price favorably.
Message
1. Electrode substrate: polyethylene terephthalate (PET), thickness 150 u m,
The external dimension is 5mm*10mm.
2. The line width is 100 μm, the line spacing is 100 μm, and the length is 3.3mm. Interdigital pairs: 10 pairs (20 fingers). 3. The metal layer structure is Cu/Ni/Au, and the thickness is 12um, 4um, and 1um respectively.
4. Electrode operating temperature range: -50℃~120℃.
5. Mainly used in various chemical, physical and medical sensors, with reliable performance and stable quality. 6. Large quantity and price favorably.
We provide a variety of interdigital electrodes, including different shapes, different sizes, different line widths and distances, different substrates (alumina ceramics, PI/PET flexible materials, monocrystalline silicon), and different processes (thick film process, DPC process, MEMS process).
