100μm flexible interdigital gold electrode IDE polyimide PI scientific research humidity sensitive photosensitive gas sensor chip
| 【Numbering】BK2021012602 | 【CAS】cas | ||
| 【Item No.】BK2021012602 | 【specification】 | ||
|
|||

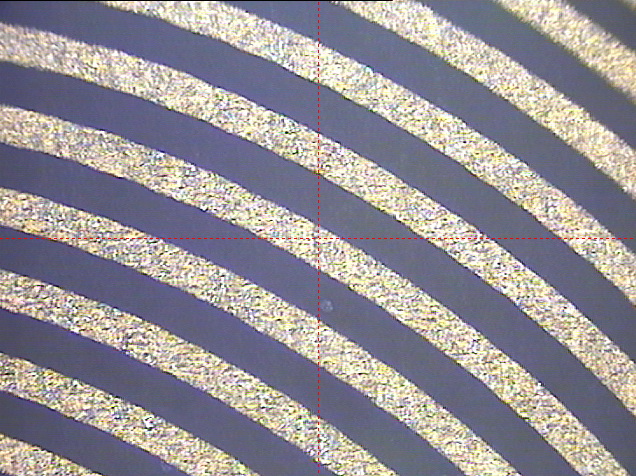

100um flexible interdigital electrode polyimide PI scientific research humidity-sensitive photosensitive gas sensor chip 1. Electrode substrate: polyimide (PI); thickness: 13um; overall size: 11.6mm*16.2mm. 2. Line width 10oum, line spacing 100um.
3. Metal layer structure: Cu/Ni/Au, the thickness is 12um, 1um, 1um respectively. 4. Electrode temperature range: -50℃~120℃.
5. Mainly used in various chemical, physical and medical sensors, but also suitable for smart wearable devices.
Message
3. Metal layer structure: Cu/Ni/Au, the thickness is 12um, 1um, 1um respectively. 4. Electrode temperature range: -50℃~120℃.
5. Mainly used in various chemical, physical and medical sensors, but also suitable for smart wearable devices.
We provide a variety of interdigital electrodes, including different shapes, different sizes, different line widths and distances, different substrates (alumina ceramics, PI/PET flexible materials, monocrystalline silicon), and different processes (thick film process, PCB process, MEMS process).
| Warm tips: Suzhou Beike nano products are only used for scientific research, not for human body,different batches of products have different specifications and performance |
Message
|
| Warm tips: Suzhou Beike nano products are only used for scientific research, not for human body,different batches of products have different specifications and performance.The website pictures are from the Internet. The pictures are for reference only. Please take the real object as the standard. In case of infringement, please contact us to delete them immediately. |
