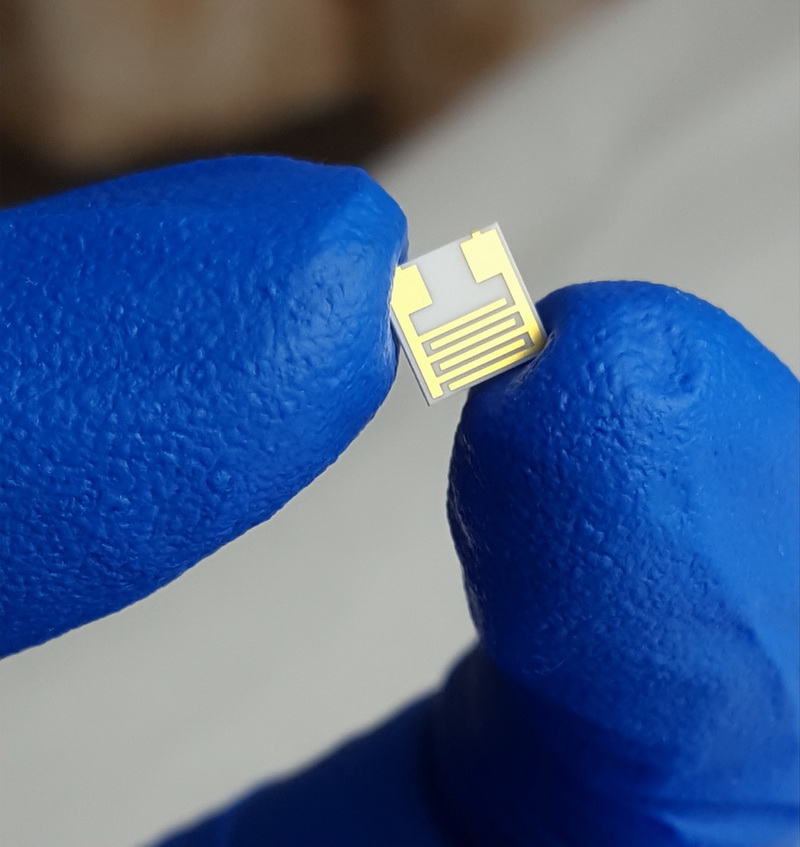

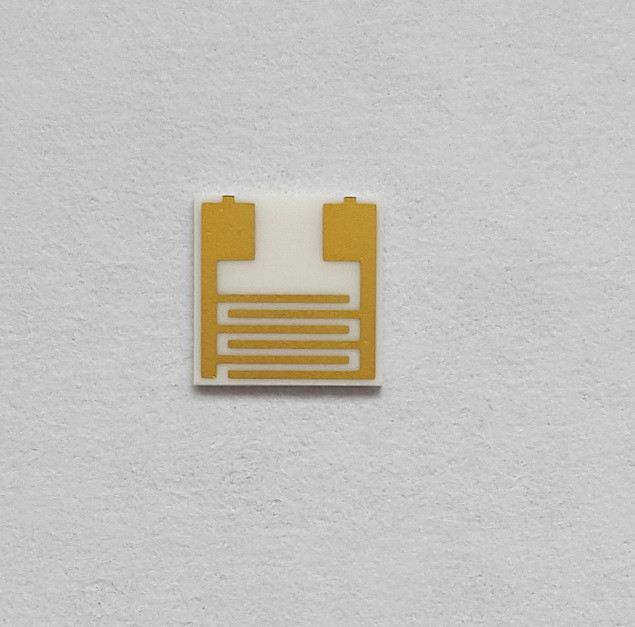

5mmX5mm interdigital gold electrode capacitance array ceramic circuit biogas humidity sensor chip scientific research
| 【Numbering】BK2021012503 | 【CAS】cas | ||
| 【Item No.】BK2021012503 | 【specification】 | ||
|
|||

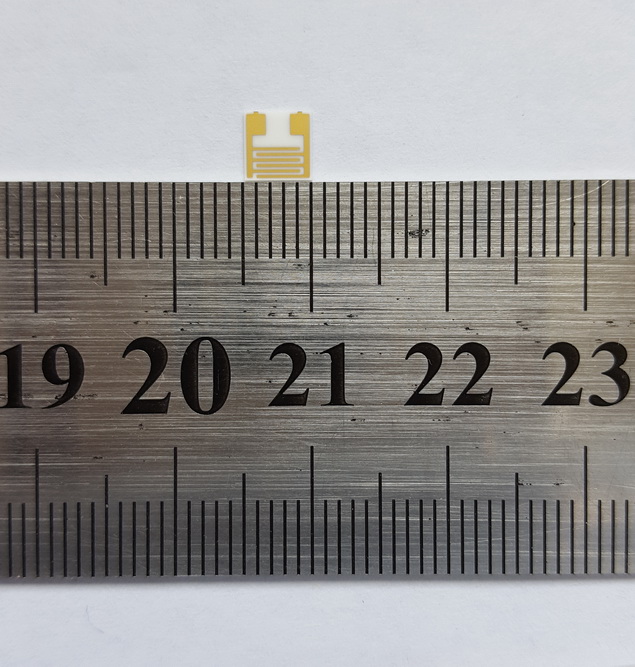

1. Substrate: Alumina ceramic; Dimensions: 5mm*5mm.

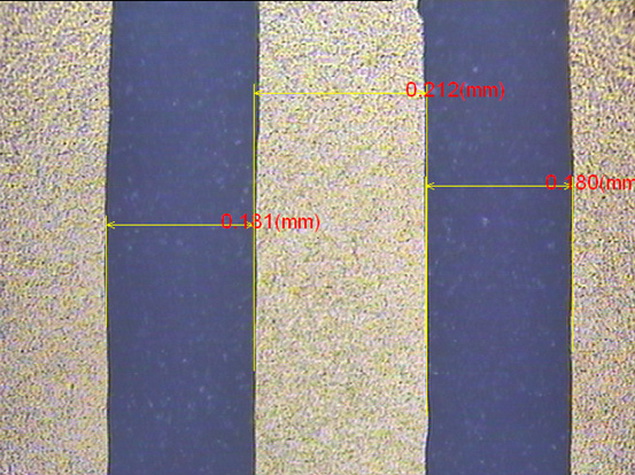

2. Line width: 215um, line spacing: 185um, finger length 3.2mm; number of interdigital pairs: 3 pairs (6 fingers).
3. Metal layer structure: Ti/Cu/Ni/Au, thickness: 0.1um, 2um, 1um, 1um.
4. The electrode operating temperature range is -150℃～350℃.
5. The product can be used as the core component of electrochemical, medical, and humidity sensors with reliable performance.
Message
2. Line width: 215um, line spacing: 185um, finger length 3.2mm; number of interdigital pairs: 3 pairs (6 fingers).
3. Metal layer structure: Ti/Cu/Ni/Au, thickness: 0.1um, 2um, 1um, 1um.
4. The electrode operating temperature range is -150℃～350℃.
5. The product can be used as the core component of electrochemical, medical, and humidity sensors with reliable performance.
We provide a variety of interdigital electrodes, including different shapes, different sizes, different line widths, different substrates (alumina ceramics, PI/PET flexible materials, monocrystalline silicon), and different processes (thick film process, PCB process) , MEMS process).
| Warm tips: Suzhou Beike nano products are only used for scientific research, not for human body,different batches of products have different specifications and performance |
